Product Description
ZTE gpon ont F620 GPON ONT series equipments are manufactured and developed by Huawei company, which is a leader in FTTH/ FTTO broadband access network field. They are properly manageable added with features such as high-bandwidth, high reliability, low power consumption and satisfy the users requirement to access broadband, voice, data and video etc.
ZTE GPON ONU F620 with 4FE ports+2*phone port, an optical network terminal (ONT), is a high-end home gateway in FTTH solution. By using the GPON technology, ultra-broadband access is provided for home and SOHO users.
The F620 features high-performance forwarding capabilities to ensure excellent experience with VoIP, Internet and HD video services. Therefore, the F620 provides a perfect terminal solution and future-oriented service supporting capabilities for FTTH deployment.
The F620 Provide English firmware and EU, US, UK, AU Power adapter for your choice.
Product Details
GPON Interface: 1 *GPON interface (SC/UPC)
Transmission Rate: 2.488Gbps downstream and 1.244bps upstream
LAN: 4FE with RJ-45 connector
VOIP: 2
Product Specifications
| GPON Interface |
| Optical port | 1 x GPON interface (SC/APC) |
| Transmission Distance | 0 ~ 20km |
| Transmit rate | 2.488Gbps downstream; 1.244Gbps upstream |
| User Network Interface | 4 x 10/100/1000Base-T; Half/full duplex; Auto MDI/MDIX; Auto negotiation 2 x POTS (VoIP) interfaces |
| Optical Module |
| Wavelength | Receiving: 1480~1500 nm Transmitting: 1290~1330 nm |
| Receiving Sensitivity: | -28dBm |
| Transmitting Optical Power | 0.5~5dBm |
| Physical Performance |
| Power consumption | <7W |
| Dimensions | 180mm(W) x 38mm(H) x 127mm(D) |
| Working temperature | 0°C ~ 40°C |
| Working humidity | 5% ~ 95% |
| Weight | 260g |
| Power supply | 12 V DC |
| Mounting mode | Desktop/Wall mounting |
| Supports hidden and coiled fiber |
| Backup battery | 3AH/6AH (Optional) |
| Main Function |
| Supported service | VoIP, Internet, IPTV |
| GPON | 8 T-CONTs, 32 GEM Ports |
| VLAN | 802.1Q, 802.1P, 802.1ad |
| MAC address table | 1k |
| IPv6 | Dual Stack, DS-Lite |
| VoIP | SIP/H.248, G.711/G.722/G.729, T.30/T.38 |
| Multicast group per user port | 256 |
Transport mode: DHL UPS EXPRESS SEA
Payment term: T/T, WESTERN UNION
1. what's the way to pay?
We support T/T, WESTERN UNION,Paypal
2.What's your shipping way?
Shopped by air sea express

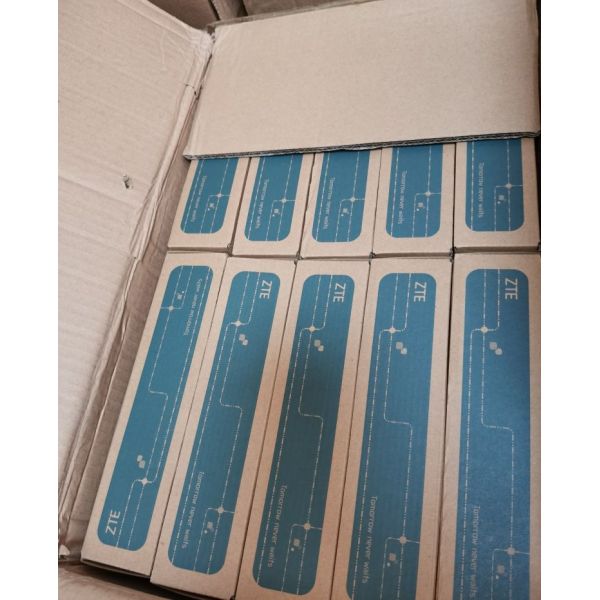

3.What is the product used for packing?
We always use catron, Unless you have different packing needs
